An air parking heater is an onboard heating device independent of the vehicle engine, primarily used to heat spaces such as the driver’s cabin when the vehicle is stationary. The following is a detailed description:

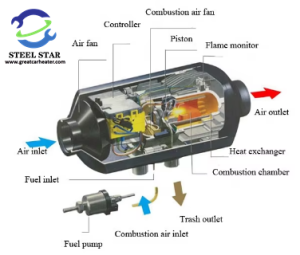

Operating Principle
Fuel is fed into the burner core through the fuel inlet pipe, atomized, and ignited by the glow plug. The flame is ejected through the rear end of the burner tube and returns to the gap between the burner and the inner wall of the heat exchanger. Exhaust gases are discharged through the exhaust pipe. Fresh air for combustion enters through the combustion air inlet and is fed into the burner tube by the combustion fan wheel on the fan motor. Simultaneously, the heating fan wheel draws in cool air through the heating air inlet, heats it in the heat exchanger, and then discharges it through the heating air outlet, thereby heating the vehicle interior.
Key Features
Independent Operation: It operates independently, without the need to start the engine, relying on the vehicle’s own battery and fuel tank for power and fuel, providing heating for the vehicle.
Wide Application: It can be installed in a variety of vehicles, including cars, trucks, RVs, agricultural machinery, and marine applications (diesel heaters only). Versatile: They can heat the cab and defrost the windshield. Some heaters also feature mobile phone remote control, allowing users to preheat their vehicles regardless of distance or obstacles.
Energy-saving and environmentally friendly: Compared to starting the engine for heating, air parking heaters consume less energy and have lower emissions, making them environmentally friendly.

1. Rated Voltage :  12V/24V/220V (Can be customized according to your needs)
2. Power :  5KW/8KW/10KW(Can be customized according to your needs)
3. Fuel Consumption :  About 0.2L/Hour
4. Ambient Temperature :  -40°~80°
5. Product Weight :  About 4.5KG
6. Fuel Usage : Diesel

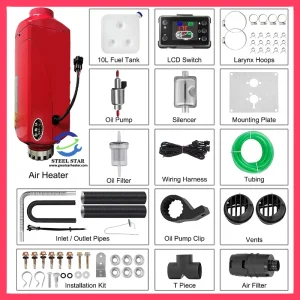

Accessories List

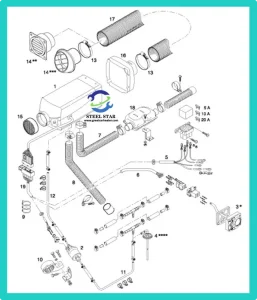

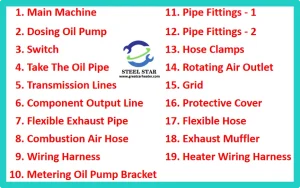

Schematic

Installation and Usage Precautions

Installation Requirements: The installation location must have adequate space to ensure unobstructed heating airflow and easy access for maintenance. The main unit can be installed inside or outside the vehicle; if installed outside, a protective cover must be installed. The intake and exhaust pipes must be arranged in accordance with requirements to prevent exhaust gases from entering the vehicle.
Usage Environment: Do not use in flammable or explosive locations or enclosed spaces where flammable gases and combustible dust are present. Avoid placing fuel tanks or other items near the heater or facing the hot air outlet.
